Baxi Duotec Compact 24: Complete Guide for Kent Homeowners

The baxi duotec compact 24 represents a popular choice amongst homeowners seeking a reliable condensing combi boiler for medium-sized properties across Kent. As heating technology continues to advance, this model has maintained its reputation for combining efficiency with compact dimensions, making it particularly suitable for properties in Rochester, Gravesend, and surrounding areas where space considerations often influence installation decisions. Understanding the technical specifications, performance characteristics, and practical implications of choosing this boiler can help homeowners make informed decisions about their heating systems.

Technical Specifications and Performance Ratings

The baxi duotec compact 24 delivers a heat output of 24 kW, positioning it as an ideal solution for homes with one to two bathrooms and up to 15 radiators. This output level strikes a balance between providing sufficient heating capacity for typical Kent properties whilst maintaining efficiency through modulating technology.

Key Performance Features

Efficiency ratings form the cornerstone of any modern boiler selection process. The system achieves an ErP A-rating for both heating and hot water production, translating to efficiency levels exceeding 90% in typical operating conditions. This high efficiency directly impacts running costs and carbon emissions.

• Maximum heating output: 24 kW
• Minimum modulation: 4.5 kW
• Hot water flow rate: 9.9 litres per minute at 35°C temperature rise
• Gas consumption: 2.70 m³/hour at maximum output
• Electrical supply: 230V 50Hz

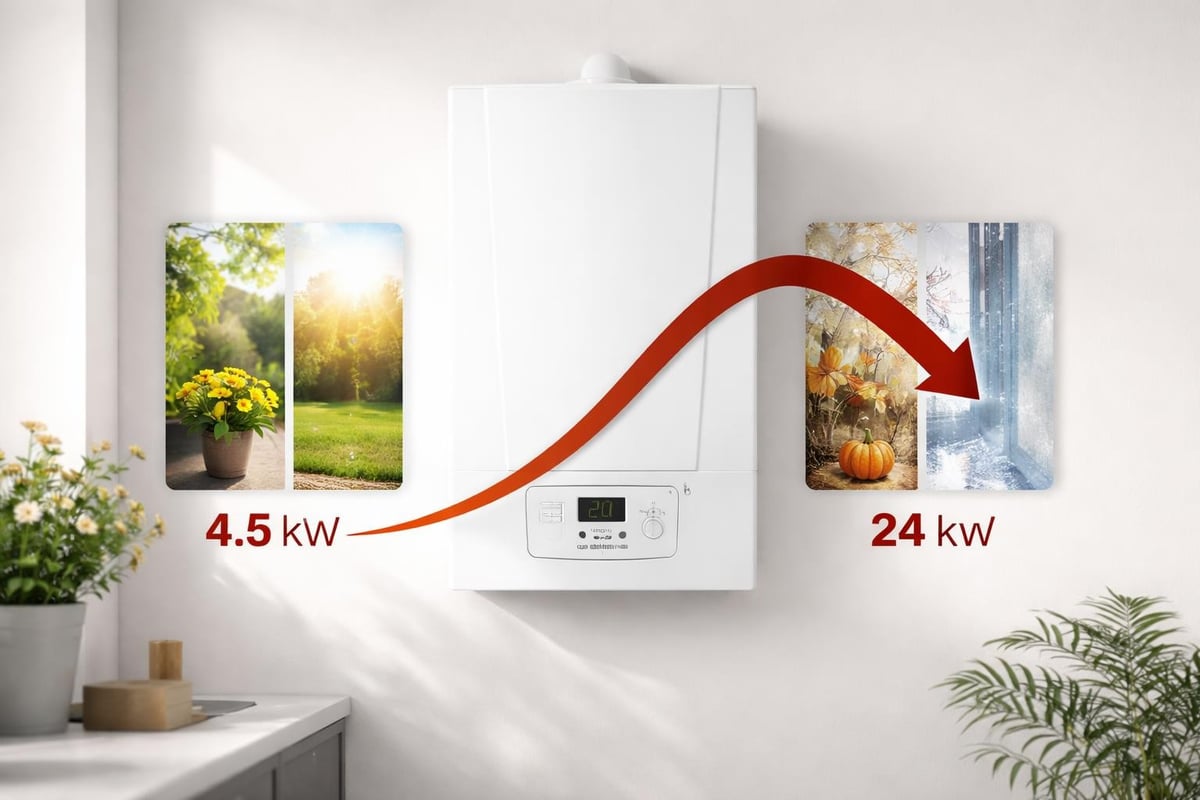

The modulation range deserves particular attention. Unlike fixed-output boilers, the baxi duotec compact 24 can reduce its output to as low as 4.5 kW, enabling it to operate more efficiently during milder weather or when heating demand decreases. This capability reduces cycling frequency and extends component lifespan.

Installation Dimensions and Requirements

Space efficiency distinguishes this model from many competitors. The unit measures just 720mm in height, 390mm in width, and 300mm in depth, making it one of the more compact combi boilers available. These dimensions prove particularly valuable in Kent properties where airing cupboards or kitchen installations require careful space management.

Installation requires consideration of flue options and positioning. The system accommodates both horizontal and vertical flue configurations, with flue lengths extending up to 12 metres depending on the number of bends. For detailed installation guidance, the comprehensive installation manual provides essential technical information.

Control Systems and User Interface

Modern boiler operation extends beyond simple on/off functionality. The baxi duotec compact 24 integrates with various control systems, enabling homeowners to optimise comfort whilst managing energy consumption effectively.

Compatible Smart Controls

The boiler works seamlessly with advanced heating controls, including weather compensation systems and smart thermostats. These technologies allow the system to anticipate heating requirements based on external temperatures and occupancy patterns. For Kent homeowners interested in maximising efficiency, exploring smart heating controls can reduce energy bills by 20-30%.

Standard control features include:

• Built-in frost protection
• Automatic air vent
• Electronic ignition system
• Digital display showing fault codes and operating status
• Pre-heat function for faster hot water delivery

The pre-heat function maintains water temperature in the heat exchanger, reducing the wait time for hot water at taps. Whilst this increases gas consumption marginally, many users find the convenience worthwhile, particularly during morning routines.

Diagnostic Capabilities

Fault detection and diagnosis have become increasingly sophisticated. The digital display communicates specific error codes, enabling qualified engineers to identify issues rapidly. This diagnostic capability minimises repair time and associated costs, particularly when combined with regular servicing through professional boiler service programmes.

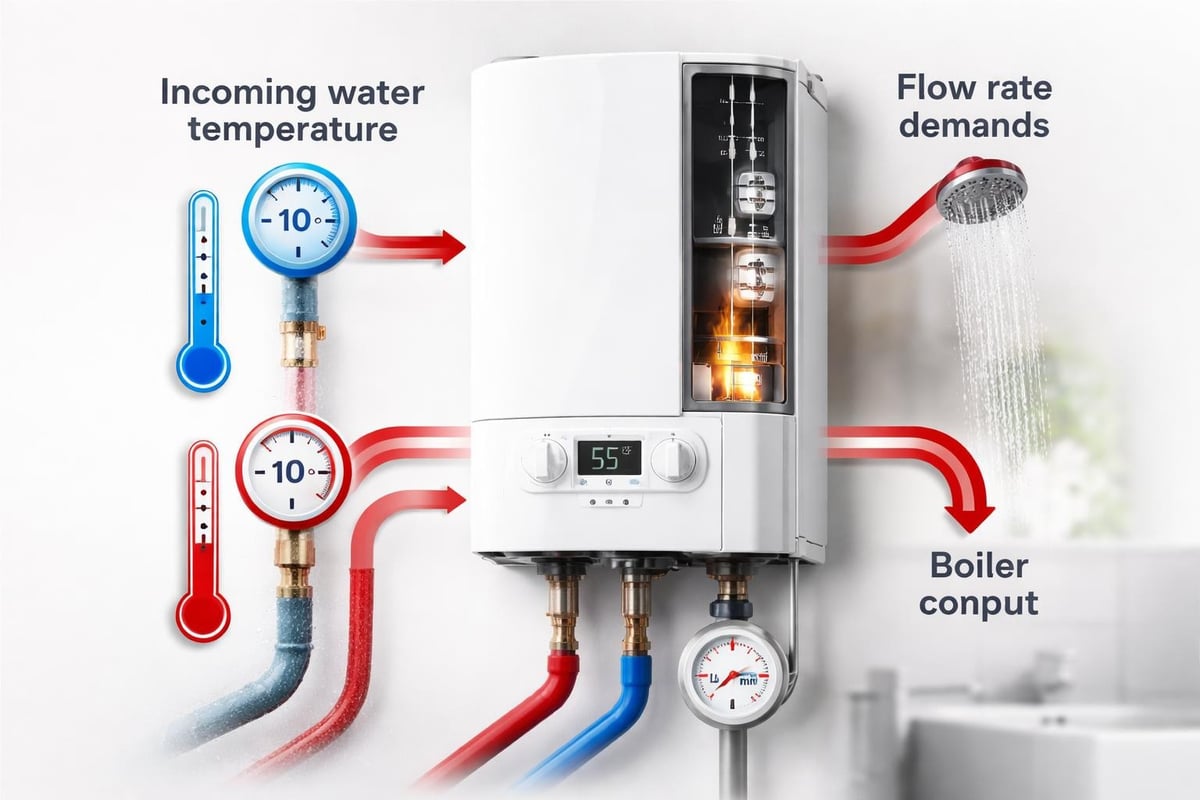

Hot Water Performance Analysis

Domestic hot water delivery represents a critical consideration for combi boiler selection. The baxi duotec compact 24 generates hot water on demand, eliminating the need for storage cylinders whilst providing adequate flow rates for typical household requirements.

Flow Rate Considerations

At a 35°C temperature rise (the standard measurement for comparing combi boilers), the unit delivers approximately 9.9 litres per minute. This flow rate suffices for one shower running simultaneously with a hot tap, making it suitable for households with moderate hot water demands.

Practical flow rate scenarios:

1. Single shower (8 litres/minute): Comfortable operation with reserve capacity
2. Bath filling: 15-20 minutes for a standard bath
3. Shower plus basin tap: Adequate performance with slight temperature variation possible
4. Two showers simultaneously: Not recommended without flow reduction devices

Temperature rise varies with incoming water temperature. During winter months, when mains water temperatures in Kent typically drop to 5-8°C, the output temperature or flow rate may require adjustment to maintain comfortable shower temperatures.

Installation Considerations for Kent Properties

Property characteristics significantly influence installation complexity and costs. Kent's diverse housing stock, ranging from Victorian terraces to modern developments, presents varied installation scenarios for the baxi duotec compact 24.

Flue Configuration Options

Flue installation requirements depend on boiler positioning and building construction. The system supports multiple flue configurations, each suited to different property layouts:

Properties built before 2005 may require additional consideration regarding condensate drainage. The boiler produces acidic condensate requiring appropriate disposal, typically through connection to internal waste pipes rather than older external drains.

System Compatibility

Converting from conventional or system boilers to the baxi duotec compact 24 requires assessment of existing pipework and radiators. The combination of higher efficiency and different flow patterns may necessitate system modifications.

Pre-installation assessments should address:

• Existing pipework diameter and condition
• Radiator sizing and heat output requirements
• Water pressure and flow rates from mains supply
• Electrical supply adequacy for pump and controls
• Gas supply pipe sizing for 24 kW input

Many Kent properties benefit from powerflushing before installing a new condensing boiler. This process removes accumulated sludge and debris, protecting the new boiler's heat exchanger and maintaining efficiency levels.

Maintenance Requirements and Longevity

Regular maintenance directly influences boiler lifespan and efficiency retention. The baxi duotec compact 24, like all condensing boilers, requires annual servicing to maintain warranty coverage and optimal performance.

Annual Service Components

Professional servicing involves comprehensive inspection and testing of critical components. Gas Safe registered engineers examine combustion efficiency, safety controls, and heat exchanger condition during routine maintenance visits.

Standard service procedures include:

1. Combustion analysis and burner inspection
2. Heat exchanger cleaning and inspection
3. Condensate trap cleaning
4. Safety device testing
5. System pressure and expansion vessel checks
6. Control operation verification

The condensate trap requires particular attention. This component collects acidic condensate and can accumulate debris over time, potentially causing blockages. Regular cleaning prevents drainage issues and maintains proper boiler operation.

Common Maintenance Issues

Awareness of potential maintenance requirements enables homeowners to recognise early warning signs. The baxi duotec compact 24 demonstrates reliability when properly maintained, though certain components may require attention over its operational life.

Customer experiences documented in user reviews indicate that proper installation and regular servicing significantly extend component longevity and reduce unexpected repair costs.

Cost Analysis and Value Proposition

Understanding total cost of ownership extends beyond initial purchase price. The baxi duotec compact 24 presents a mid-range investment that balances upfront costs with operational efficiency and reliability.

Installation Costs in Kent

Installation pricing varies based on existing system configuration, property accessibility, and additional work requirements. For straightforward replacements in Kent properties, costs typically range between £1,800 and £2,500, including the boiler, standard flue, controls, and labour.

Factors influencing installation costs:

• System type conversion (conventional to combi adds £300-£500)
• Flue complexity and length (extended runs add £150-£400)
• Control upgrades (smart controls add £200-£350)
• Pipework modifications (variable, £200-£800)
• System cleaning requirements (powerflush adds £350-£500)

For homeowners concerned about upfront costs, boiler finance options provide flexible payment arrangements, spreading investment over manageable monthly instalments.

Running Cost Projections

Annual heating costs depend on property size, insulation standards, occupancy patterns, and gas prices. A typical three-bedroom semi-detached Kent property might expect annual gas consumption between 12,000 and 15,000 kWh with the baxi duotec compact 24.

At current 2026 gas prices (approximately 7.5p per kWh), this translates to annual heating costs of £900-£1,125. The boiler's high efficiency ensures that maximum heat energy reaches radiators and hot water, minimising waste.

Warranty Coverage and Manufacturer Support

Manufacturer warranty provides important protection against component failures during the initial years of operation. Baxi offers competitive warranty terms on the baxi duotec compact 24, though coverage duration depends on installation circumstances and registration procedures.

Standard Warranty Terms

The base warranty covers parts and labour for two years from installation date. Extended warranties up to seven years become available when installation is completed by approved installers and the boiler is registered within 30 days of commissioning.

Warranty extension requirements:

• Installation by Gas Safe registered engineer
• Registration within 30 days of commissioning
• Annual servicing by qualified engineer
• Use of approved system cleaners and inhibitors
• Compliance with manufacturer installation guidelines

Extended warranty programmes provide peace of mind, particularly given the costs of potential component replacements. Circuit boards typically cost £200-£300, whilst heat exchangers can exceed £400 for parts alone.

Castle Heating Kent, as experienced Baxi installers, ensures proper installation procedures and warranty registration, maximising protection for homeowners throughout Kent.

Suitability Assessment for Different Property Types

Not every boiler suits every property. The baxi duotec compact 24 excels in specific scenarios whilst proving less suitable for others. Understanding these distinctions helps homeowners make appropriate selections.

Ideal Property Profiles

Best suited for:

• Two to three bedroom semi-detached or terraced properties
• Homes with one bathroom and one ensuite
• Properties with 10-15 radiators
• Households with two to four occupants
• Kent homes with mains water pressure above 1.5 bar

The 24 kW output handles typical heating loads efficiently whilst the hot water flow rate accommodates standard domestic requirements. Properties matching this profile represent the sweet spot for this model's capabilities.

Less Suitable Scenarios

Properties with higher heating or hot water demands may experience limitations. Homes with multiple bathrooms expecting simultaneous shower use, or larger properties requiring outputs exceeding 24 kW, might benefit from higher-capacity models or alternative system configurations.

Consider alternatives if:

• Property exceeds four bedrooms or 200 square metres
• Three or more bathrooms require simultaneous operation
• Multiple high-flow showers (exceeding 12 litres/minute) are installed
• Heating load calculations exceed 22 kW
• Hot water storage is preferred over instantaneous generation

For properties with higher demands, exploring combi boiler alternatives or system boiler configurations with unvented cylinders may prove more appropriate.

Environmental Considerations and Efficiency

Environmental impact increasingly influences heating system decisions. The baxi duotec compact 24 offers improved efficiency compared to older boilers, reducing both carbon emissions and running costs.

Emissions Reduction

Replacing a G-rated boiler (below 70% efficiency) from the 1990s with this A-rated condensing unit can reduce carbon emissions by approximately 1.2 tonnes annually in a typical Kent home. This reduction equivalent approximates removing a car from the road for three months each year.

The condensing technology recovers heat from exhaust gases that older boilers release into the atmosphere. This recovered energy contributes to the boiler's high efficiency rating, extracting maximum value from each unit of gas consumed.

Future-Proofing Considerations

Government policy increasingly focuses on decarbonising home heating. Whilst hydrogen-ready boilers and heat pumps represent longer-term alternatives, the baxi duotec compact 24 provides an efficient interim solution compliant with current building regulations.

Efficiency optimisation strategies:

1. Maintain proper system water treatment
2. Ensure adequate insulation and draught-proofing
3. Install thermostatic radiator valves on all radiators
4. Use weather compensation controls where possible
5. Schedule annual professional servicing
6. Bleed radiators and check system pressure regularly

Combining the boiler with appropriate controls and property improvements maximises efficiency gains and prepares homes for potential future heating system transitions.

Professional Installation Standards

Installation quality fundamentally affects boiler performance, efficiency, and longevity. The baxi duotec compact 24 requires precise installation following manufacturer specifications and building regulation requirements.

Gas Safe Registration Requirements

All gas boiler installations legally require completion by Gas Safe registered engineers. This registration ensures installers possess verified competence in gas safety and boiler installation procedures. Homeowners should always verify Gas Safe credentials before permitting any work on gas appliances.

Proper commissioning involves multiple verification steps beyond simply connecting pipes and wires. Engineers must conduct combustion analysis, verify safety device operation, set appropriate parameters, and document installation details for warranty purposes.

For residents seeking reliable installation services, boiler installation specialists in Kent provide the expertise and certification necessary for compliant, safe installations.

Building Regulations Compliance

Boiler installations must comply with Part L of Building Regulations, addressing energy efficiency in dwellings. Compliance requires appropriate controls, including room thermostats, programmer functionality, and thermostatic radiator valves where applicable.

Mandatory control requirements include:

• Boiler interlock preventing operation without demand
• Time and temperature control in living areas
• Thermostatic radiator valves on all radiators except one
• Weather compensation or load compensation where feasible
• Appropriate commissioning and user instruction

Documentation proving compliance typically involves Building Control notification and certification, processes that qualified installers manage as part of standard installation procedures.

The baxi duotec compact 24 delivers reliable performance for medium-sized Kent properties when properly specified, installed, and maintained. For homeowners in Rochester, Gravesend, and surrounding areas seeking expert guidance on boiler selection and professional installation, Castle Heating Kent brings over 20 years of experience, Gas Safe registered engineers, and a commitment to quality service. Contact our team to discuss your heating requirements and arrange a free, no-obligation consultation for your property.
